Fresh Tag 1D Temperature Data Logger (เครื่องบันทึกอุณหภูมิ Fresh Tag 1D)

  • Intuitive LCD display
  • 65000 readings Max. capacity
  • 90 days Max. run days
  • Easy to operate and place
  • Automatic PDF/CSV reports
  • Waterproof package conforms to IP67
  • Compatible with Windows and Mac OS alike



  • จอแสดงผล LCD ที่ใช้งานง่าย
  • อ่านค่าได้สูงสุด 65,000 ครั้ง ความจุ
  • สูงสุด 90 วัน วิ่งวัน
  • ง่ายต่อการใช้งานและวาง
  • รายงาน PDF/CSV อัตโนมัติ
  • แพ็คเกจกันน้ำได้มาตรฐาน IP67
  • เข้ากันได้กับ Windows และ Mac OS เหมือนกัน
Category

Description

Fresh Tag 1D is a disposable PDF temperature data logger with LCD display function that makes it easy to view real-time temperature data. Its built-in PDF file generation function allows the logger to be plugged into a PC to generate unmodifiable PDF data reports without additional software.

This disposable PDF temperature data logger has the advantages of low cost, easy operation and small space occupation. The product is made of food grade packaging materials. It is compact, light, waterproof and widely used. It is an ideal choice for monitoring and recording the temperature changes of sensitive goods during transportation.

Fresh Tag 1D Single Use PDF temperature data logger is mainly used to record the temperature of fruits and vegetables, food, and other products. It is widely used in cold chain storage and logistics of refrigerated containers, refrigerated trucks, refrigerated bags, refrigerated cabinets, etc.

Features

  • Small size but large display The USB temperature sensor has a compact profile and lightweight design, but the LCD screen accounts for a large proportion. It can show the temperature data more clearly and intuitively.
  • Easy to place and operate The small and light disposable USB thermograph can be placed anywhere. It requires no software or drivers to set up or download data.

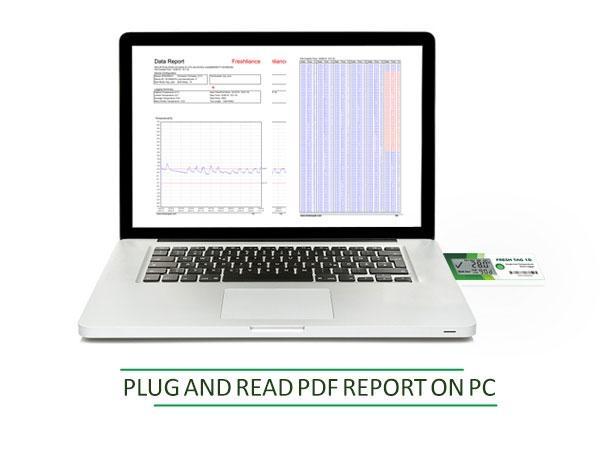

  • Automatic PDF/CSV data report The built-in USB connector can be plugged into any PC USB port, and PDF/CSV/PDF+CSV format reports with graphs and tables are automatically generated, with no cable or reader required.
  • High accuracy and large memory It can work for up to 90 days. Its memory capacity reaches 65,000 readings. Its advanced monitoring technology provides higher accuracy when detecting temperature changes.
  • Waterproof packages comply with IP67 A protective plastic pouch helps keep logger dry and eliminates concerns when transporting products with cold packs, ice, or in damp environments.
  • Pass professional certification The USB temperature sensor has passed CE certification and meets the basic requirements stipulated in European laws on health, safety, environmental protection, and consumer protection.

Applications

Fresh Tag 1D USB temperature data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.

For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.

For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.

The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.

The USB Temperature Data Logger is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.

Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.

Fresh Tag 1D เป็นเครื่องบันทึกข้อมูลอุณหภูมิ PDF แบบใช้แล้วทิ้งพร้อมฟังก์ชันจอแสดงผล LCD ที่ทำให้ง่ายต่อการดูข้อมูลอุณหภูมิแบบเรียลไทม์ ฟังก์ชันการสร้างไฟล์ PDF ในตัวทำให้สามารถเสียบปลั๊กเครื่องบันทึกเข้ากับพีซีเพื่อสร้างรายงานข้อมูล PDF ที่ไม่สามารถแก้ไขได้โดยไม่ต้องใช้ซอฟต์แวร์เพิ่มเติม

เครื่องบันทึกข้อมูลอุณหภูมิ PDF แบบใช้แล้วทิ้งนี้มีข้อดีคือ ต้นทุนต่ำ ใช้งานง่าย และครอบครองพื้นที่ขนาดเล็ก ผลิตภัณฑ์นี้ทำจากวัสดุบรรจุภัณฑ์เกรดอาหาร มีขนาดกะทัดรัด น้ำหนักเบา กันน้ำ และใช้กันอย่างแพร่หลาย เป็นตัวเลือกที่เหมาะสำหรับการตรวจสอบและบันทึกการเปลี่ยนแปลงอุณหภูมิของสินค้าที่มีความละเอียดอ่อนในระหว่างการขนส่ง

เครื่องบันทึกอุณหภูมิ PDF แบบใช้ครั้งเดียว Fresh Tag 1D ส่วนใหญ่จะใช้ในการบันทึกอุณหภูมิของผักและผลไม้ อาหาร และผลิตภัณฑ์อื่น ๆ มีการใช้กันอย่างแพร่หลายในการจัดเก็บโซ่เย็นและโลจิสติกส์ของตู้คอนเทนเนอร์ตู้เย็น รถบรรทุกตู้เย็น กระเป๋าแช่เย็น ตู้แช่เย็น ฯลฯ

คุณสมบัติ

  • ขนาดเล็กแต่จอแสดงผลขนาดใหญ่ เซ็นเซอร์อุณหภูมิ USB มีขนาดกะทัดรัดและน้ำหนักเบา แต่หน้าจอ LCD มีสัดส่วนที่มาก สามารถแสดงข้อมูลอุณหภูมิได้ชัดเจนและเป็นธรรมชาติยิ่งขึ้น
  • ง่ายต่อการวางและใช้งาน เทอร์โมกราฟ USB แบบใช้แล้วทิ้งขนาดเล็กและน้ำหนักเบาสามารถวางได้ทุกที่ ไม่ต้องใช้ซอฟต์แวร์หรือไดรเวอร์ในการตั้งค่าหรือดาวน์โหลดข้อมูล
  • รายงานข้อมูล PDF/CSV อัตโนมัติ สามารถเสียบขั้วต่อ USB ในตัวเข้ากับพอร์ต USB ของพีซี และรายงานรูปแบบ PDF/CSV/PDF+CSV พร้อมกราฟและตารางจะถูกสร้างขึ้นโดยอัตโนมัติ โดยไม่ต้องใช้สายเคเบิลหรือเครื่องอ่าน
  • ความแม่นยำสูงและหน่วยความจำขนาดใหญ่ สามารถทำงานได้ถึง 90 วัน ความจุหน่วยความจำสูงถึง 65,000 การอ่าน เทคโนโลยีการตรวจสอบขั้นสูงให้ความแม่นยำที่สูงขึ้นเมื่อตรวจจับการเปลี่ยนแปลงของอุณหภูมิ
  • บรรจุภัณฑ์กันน้ำเป็นไปตามมาตรฐาน IP67 ซองพลาสติกป้องกันช่วยให้เครื่องบันทึกแห้ง และขจัดความกังวลเมื่อขนส่งผลิตภัณฑ์ด้วยถุงเย็น น้ำแข็ง หรือในสภาพแวดล้อมที่ชื้น
  • ผ่านการรับรองระดับมืออาชีพ เซ็นเซอร์อุณหภูมิ USB ผ่านการรับรอง CE และตรงตามข้อกำหนดพื้นฐานที่กำหนดไว้ในกฎหมายยุโรปด้านสุขภาพ ความปลอดภัย การคุ้มครองสิ่งแวดล้อม และการคุ้มครองผู้บริโภค

การใช้งาน

เครื่องบันทึกอุณหภูมิ Fresh Tag 1D USB มีความสำคัญต่อการขนส่งด้วยโซ่เย็นสำหรับผลิตภัณฑ์ที่เน่าเสียง่าย โดยเฉพาะผลิตภัณฑ์อาหาร ห่วงโซ่ความเย็นที่ไม่ขาดสามารถรับประกันได้ว่าผลิตภัณฑ์อาหารจะรักษาคุณภาพสูงและอายุการเก็บรักษาที่เหมาะสม

สำหรับผลิตภัณฑ์เนื้อสัตว์และปลา หรือที่เรียกว่าอาหารแช่แข็ง สิ่งสำคัญมากคือต้องรักษาการเจริญเติบโตของจุลินทรีย์ให้ต่ำที่สุดเท่าที่จะเป็นไปได้โดยการรักษาค่าขีดจำกัดอุณหภูมิ

สำหรับผักและผลไม้สิ่งที่สำคัญที่สุดคือการป้องกันไม่ให้สุกเร็วเกินไป ผลไม้ ผัก และดอกไม้เป็นสินค้าที่เน่าเสียง่ายซึ่งต้องมีการตรวจสอบสภาพแวดล้อมอย่างเหมาะสมในกระบวนการหลังการเก็บเกี่ยว เพื่อเพิ่มความสด คุณภาพ และอายุการเก็บรักษาจากไร่สู่โต๊ะ

สภาพแวดล้อมของผลิตภัณฑ์ที่ไวต่ออุณหภูมิจะต้องได้รับการตรวจสอบและจัดทำเอกสารอย่างระมัดระวังในระหว่างการจัดการและการเก็บรักษา เพื่อให้มั่นใจในความปลอดภัยของอาหาร คุณภาพ และอายุการเก็บรักษาที่ยาวนานขึ้น โดยเฉพาะอย่างยิ่งสำหรับผลิตภัณฑ์ที่เน่าเสียง่ายสูง เช่น ผลิตผล ผลิตภัณฑ์จากนม อาหารทะเล เนื้อสัตว์ สัตว์ปีก และดอกไม้ ผลิตภัณฑ์.

เครื่องบันทึกข้อมูลอุณหภูมิแบบ USB เป็นหลักฐานที่จำเป็นสำหรับเจ้าของผลิตภัณฑ์และผู้ขนส่งสายโซ่เย็น หากจำเป็นต้องคัดค้านประสิทธิภาพของสายโซ่เย็น

Freshliance นำเสนอโซลูชันการบันทึกข้อมูลอุณหภูมิหรืออุณหภูมิและความชื้นทุกประเภท เพื่อให้แน่ใจว่าทุกการเปลี่ยนแปลงในโซลูชันห่วงโซ่ความเย็นทั้งหมดจะถูกติดตามและบันทึก มีการบันทึก PDF แบบย้อนกลับไม่ได้ ประวัติอุณหภูมิ CSV และการบันทึก IOT ออนไลน์ในรูปแบบใดก็ได้
